These nozzles give a circular spray pattern. The uniform distribution is throughout the circular area. The ‘X’ shape insert imparts a rotational speed to the fluid and thereby controlling the discharge and spray angle.

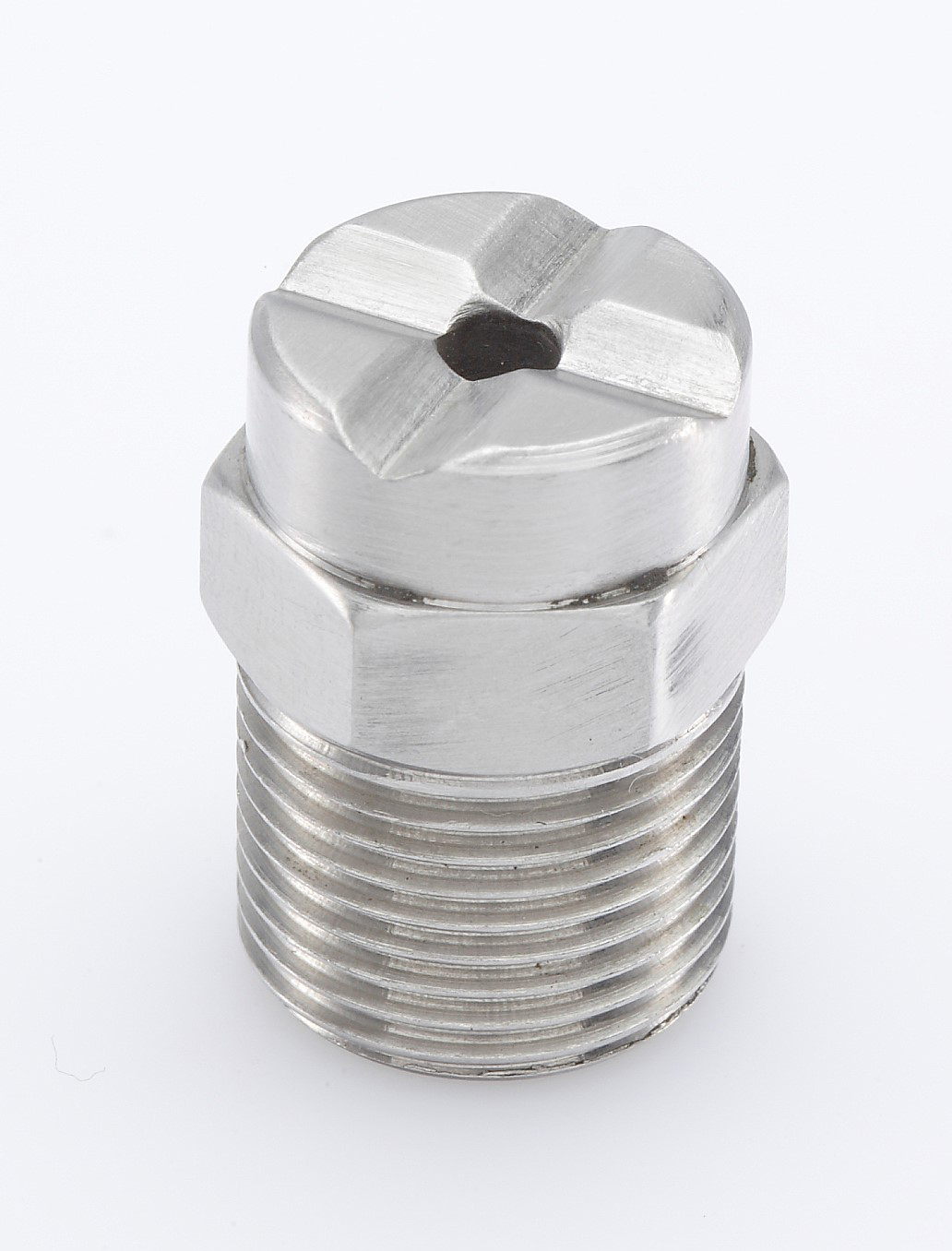

The Square pattern full cone nozzle is similar to the conventional full cone nozzle. The only distinguishing feature is the notch machined in a cross pattern on the nozzle inlet or a square flat machined within the periphery of the nozzle inlet depending on the spray coverage required. This profile produces the square spray pattern.

The Flanged end Full cone nozzles are used mainly where very high flow rates at very low pressures are desired and which cannot be accommodated in conventional thread sizes.

Narrow angle Full cone nozzles – produce a very high impact spray jet with deep penetration effect. They are available in 2 piece and 3 piece constructions.

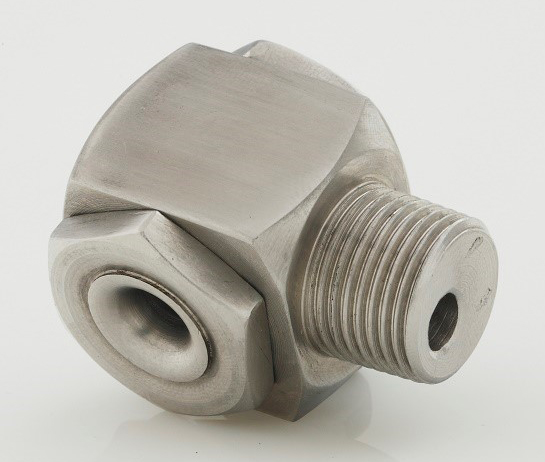

The tangential full cone nozzles, have been provided with an eccentric hole at their inlet. Their design geometry provides a well balanced uniform atomization. Absence of any inserts and large free passage prevents the nozzle from clogging.

Application: Washing and cooling of gaseous and solid fluids, surface spraying and other washing and cleaning processes.

Spiral nozzles are designed uniquely to deliver fine high velocity sprays at comparatively low pressures. The uniform distribution of spray droplets is mainly due to the precisely designed high impact blade angles. The special features of these nozzles are that they give high energy efficiency, very fine atomization. Absence of any inserts provides more space making it clog resistant thereby resulting in high discharge velocity even at a relatively smaller size.
Spiral nozzles are made available in Full cone and Hollow cone pattern too.
These nozzles find application in pollution control, cooling or aeration application, flue gas scrubbing, gas cooling, washing and rinsing, fire suppression and prevention etc.

An Axial Full Cone nozzle is mounted on a square body. This allows the nozzle to spray at an axis of 90º to the axis of the end connection.
