These nozzles give a uniform curtain shaped flat spray tapering to the edges. The elliptical orifice delivers a sharp knife like spray edge.

Application : High impact cleaning, filter cleaning, degreasing etc.

These nozzles have low clogging risk while delivering a wide angle flat spray with medium impact and uniform spray. The controlled deflection angle enables fixing the nozzle in a desired position for any required application.

Application: Cooling conveyor belts, filter washing, coating etc.

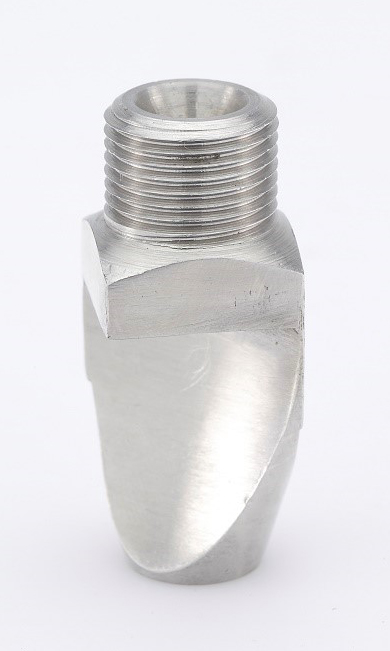

These nozzles have a low clogging risk. They produce narrow angles. As the jet energy by this narrow spray is concentrated on a lesser area the impact of the spray is remarkable. The controlled deflection angle enables fixing the nozzle in a desired position for required application’s

Application: High impact washing, degreasing, phosphating etc

Descaling tips are mainly provided with a dovetail, which help in easy installing and fixed orientation. Their uniform spray pattern can well be noticed on a spray header. They are used in conjunction with weld necked dovetailed nipples and retainer nuts

Application: Descaling.

Flat fan spray tips are usually recommended for easy and low cost installation. They are used in conjunction with threaded nipples, strainers and retainer nuts. For better atomization, mists etc we have further developed low flow rate Flat Fan polyacetal tips used in conjunction with filters & retainer nuts. The spray angle of these tips vary from 60º to 80º and flow rate from 0.15 lpm to 2.0 lpm @ 3.0 bar differential pressure

Application:Spray coating, spray cooling, humidifying, misting, degreasing, pressure cleaning etc.

This is an improvised version of conventional descaling nozzles. The construction of this nozzle is made up of a welding nipple in which flat fan jet nozzle can be fitted in a fixed orientation. This tip is clamped with the retaining nut. An inbuilt stabilizer provided above the tip helps in improving better surface quality consuming less water and energy and allowing low maintenance and operating costs.
