This 2 fluid nozzle is used to atomize liquids with the help of air or steam. These nozzles are made available with different spray set ups, which can be altered by just changing the air cap or liquid nozzle. Different desired flow rates and spray coverage can be achieved by interchanging these. Depending on the type of liquid the mixing set up is selected.

Internal mixing is used where low viscous fluids absent from impurities need to be sprayed. This is the conventional nozzle design with a modified set of needle assembly. This needle ensures that the needle orifice does not clog. The adjusting screw provided with the needle controls the liquid flow. The entire assembly is operated manually.

External mixing is used where low viscous fluids absent from impurities need to be sprayed. This is the conventional nozzle design with a modified set of needle assembly. This needle ensures that the needle orifice does not clog. The adjusting screw provided with the needle controls the liquid flow. The entire assembly is operated manually.

This conventional Full Cone has a compact design with an adjustable air cap by which a variation in the atomization can be achieved .It has application in mainly tablet coating. It is made available in 1/8”BSP(F) connection.
This model is also made available with a control screw to regulate the flow of liquid

This nozzle is specially designed to achieve wide angle coverage and high capacity flow rates subsequently maintaining the fine atomization. Its spray angle ranges from 60º to 100º. This design is available in a cluster of 3 or 7 full cone nozzles mounted on the nozzle head. It has independent connections for Air and Liquid. On request similar design with a modified auto shut off assembly can also be supplied.

Siddharth Air Atomizing nozzle is a unique two substance nozzle which finds its application in tablet coating, humidifying air products, F.B.C., tracking light heavy oil firing, spray coating, drying etc.
Efficiently designed to reduce compressed air consumption, it works under an atomizing pressure of 0.3 bar upwards. This particular design is available in a flat fan pattern too. This two substance nozzle guarantees a large surface coverage by interchanging different spray setups.

Siddharth Air Atomizing nozzle is a unique two substance nozzle which finds its application in tablet coating, humidifying air products, F.B.D, tracking, light, heavy oil firing, spray coating, drying etc.
This particular design is available in a flat fan pattern and is efficiently designed to reduce compressed air consumption.

Specially designed for applications where large quantities of highly viscous liquids and pastes are required to be finely atomized to mists. Available in a Full Cone pattern with spray angle varying from 20° - 40°. Quality of Atomization can be increased or decreased by adjusting the Air Cap. Auto shut off needle assembly to prevents post dropping. Is made available with desired extended pipe connections on requests. Can be used for Top and Bottom entry in FBP / FBD applications, spray coating, spray drying etc. M.O.C. being S.S.316, P.T.F.E and Viton.

Siddharth Air Atomizing spray gun is specially designed for applications where, large quantities of highly viscous liquids and pastes are required to be finely atomized to mists. This gun is available in a Full Cone pattern and operates on the principle of external mixing. By turning the Air Cap the spray cone can be varied from 20° - 30°.

Siddharth Air Atomizing spray gun is a unique two substance gun which finds its application in tablet coating, humidifying air products, F.B.D, tracking light heavy oil firing, spray coating, drying etc.
This particular spray gun is available in a flat fan pattern and is efficiently designed to reduce compressed air consumption. This design guarantees a large surface coverage.

Siddharth Air Atomizing nozzle is a unique two substance nozzle which finds its application in tablet coating, humidifying air products, F.B.D, tracking, light, heavy oil firing, spray coating, drying etc.
This particular design is available in a flat fan pattern and is efficiently designed to reduce compressed air consumption.

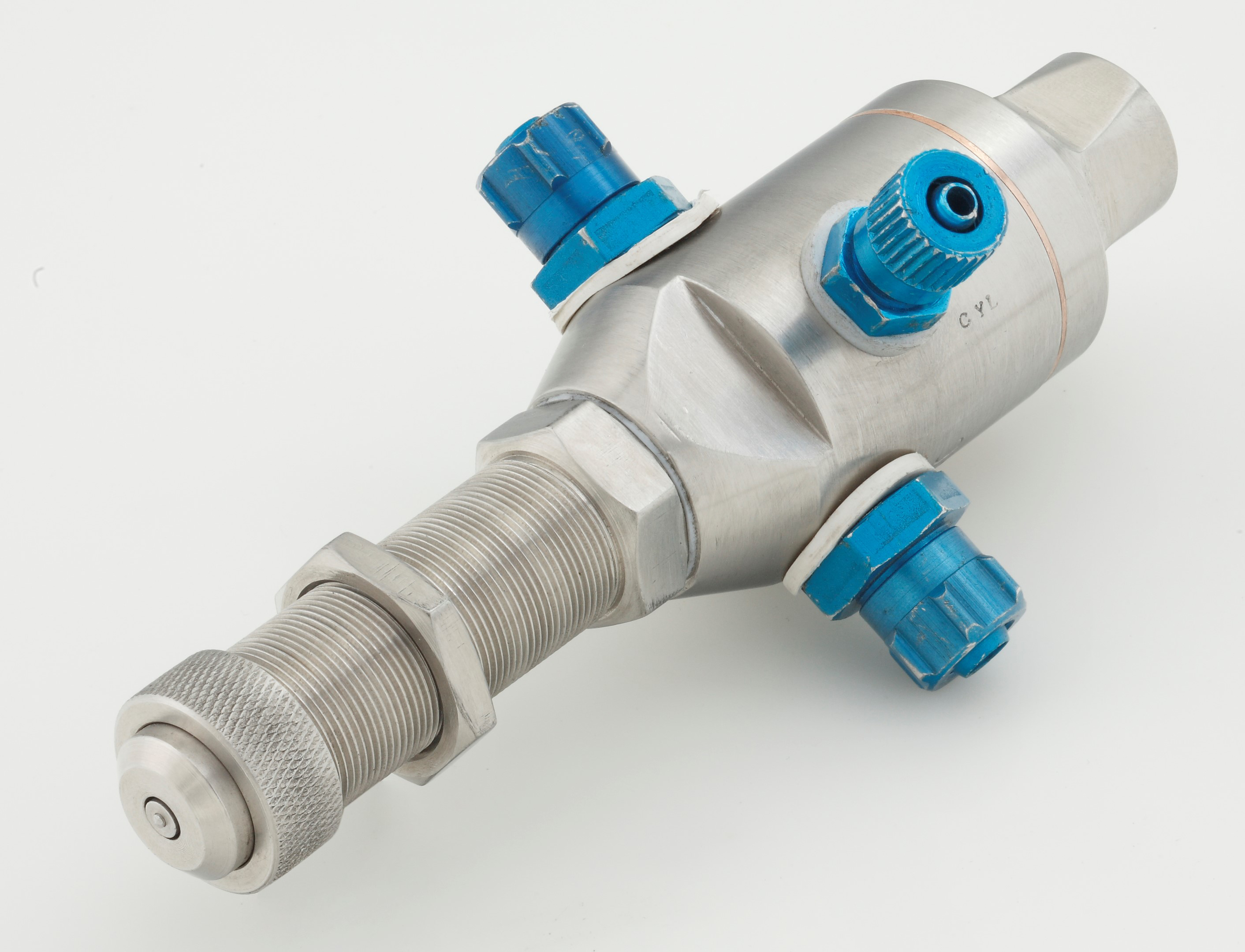

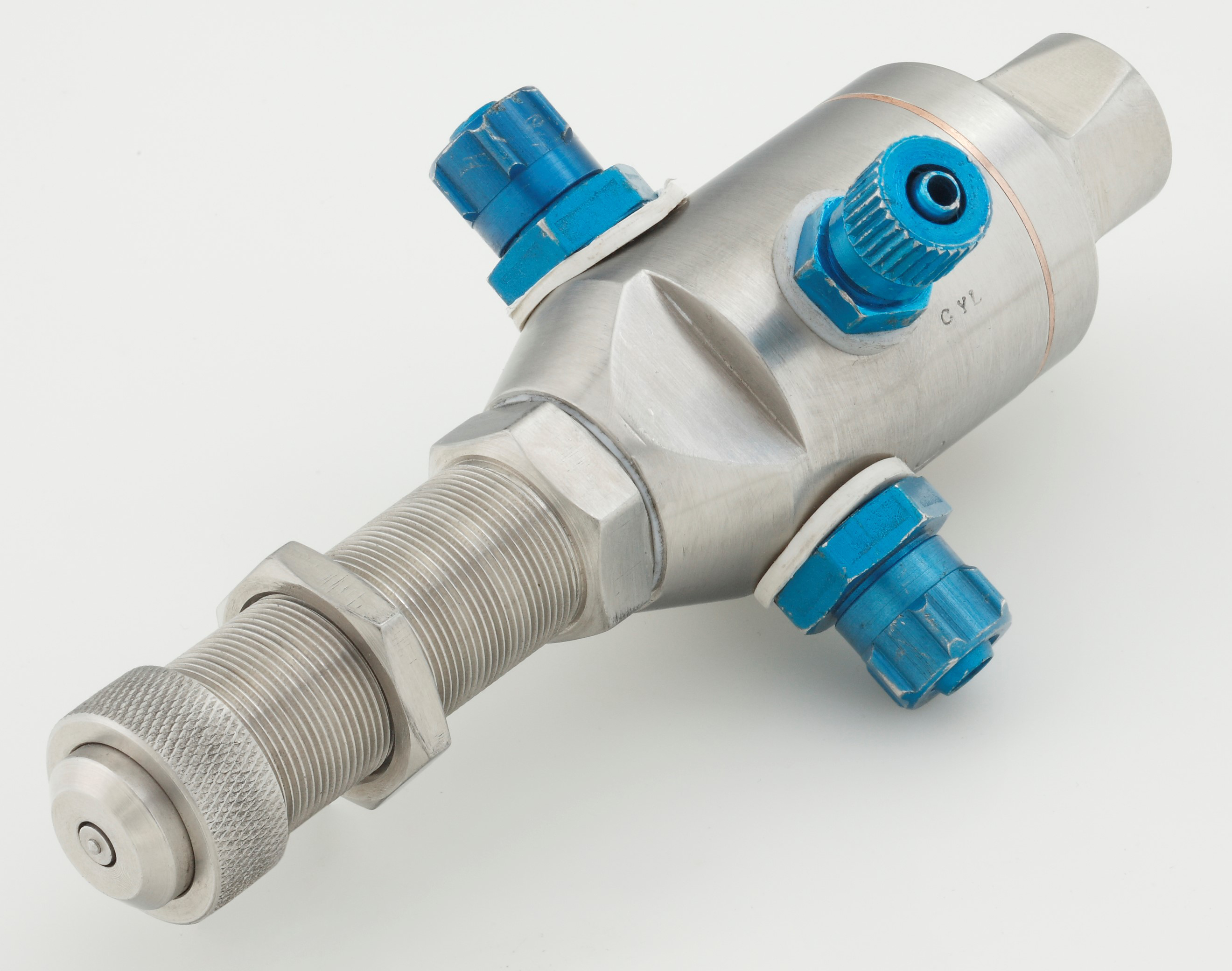

Siddharth Air Atomizing spray guns are a unique two substance nozzle which finds their applications in tablet coating, humidifying air products, F.B.C., tracking light heavy oil firing, spray coating, drying etc.
Efficiently designed to reduce compressed air consumption, they work under an atomizing pressure of 0.3 bar upwards.

These particular designs are available in both Full Cone and Flat Fan pattern too. These guns are made available with different spray set ups, which can be altered by just changing the air cap or liquid nozzle. Different desired flow rates and spray coverage’s can be achieved by interchanging these. Depending on the type of liquid the mixing set up is selected. The set ups are based on the two basic mixing principles – Internal mixing and External mixing. Liquid inserts are made available with Orifice sizes ranging from sizes Ø 0.5mm – Ø 2.5mm.

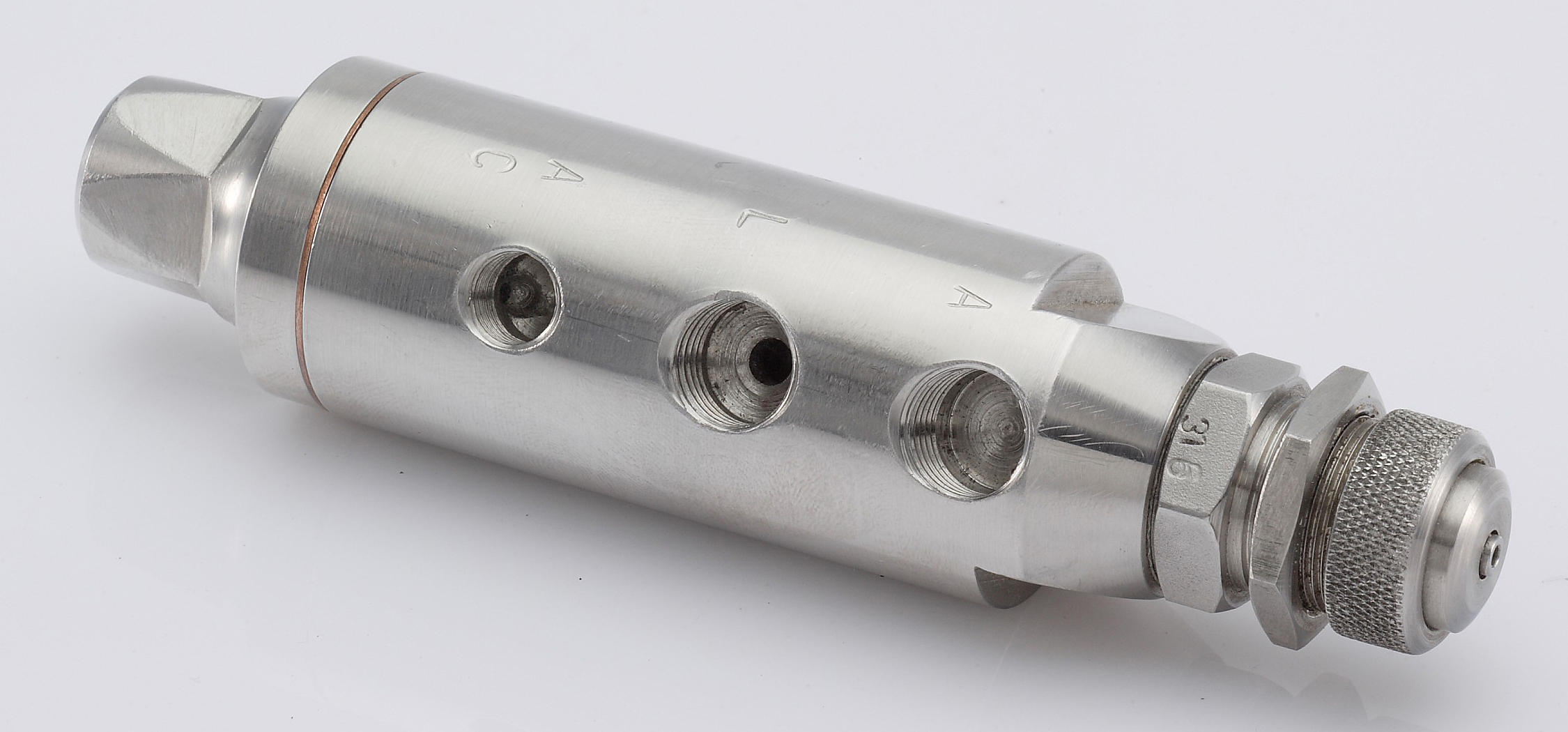

The construction of these gun’s are such that their three independent connections - each for Air, Liquid and Compressed Air for Auto shut off needle - can be provided @ 90º from each other, @180º from each other or in a straight line whichever desired. The precise design of an inbuilt cleaning needle facilitates in quick cleaning of the liquid nozzle outlet. On switching off the compressed air supply the needle closes automatically and abruptly the liquid outlet, thereby avoiding any post dropping. An extended version of the liquid nozzle is also supplied on request depending on the requisite length for process requirement.

All individual components are available as spare parts. i.e. nozzle bodies, liquid inserts and air caps, needle assemblies etc. The precise manufacturing of replacement parts ensures interchangeability without hampering the spray performance.
End connections can be provided at 180° apart for Air and Liquid inlets or all three supply ports in the same line. Standard connections are 1/4" BSP (F) for Air and Liquid inlets and 1/8” BSP compressed air inlet for Auto Shut off.
Material of construction is S.S. 316 with P.T.F.E. gaskets and bushes and viton seals.

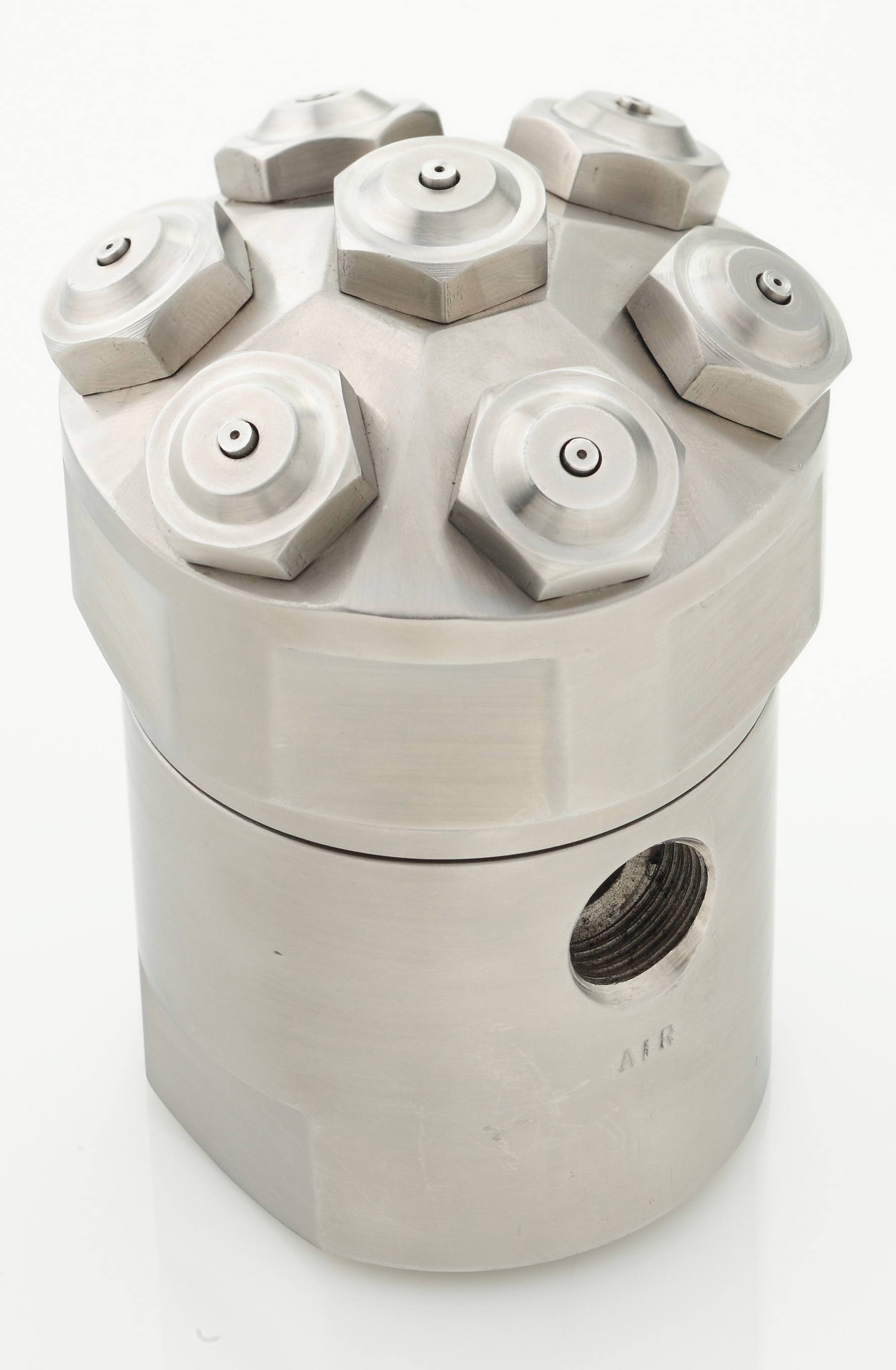

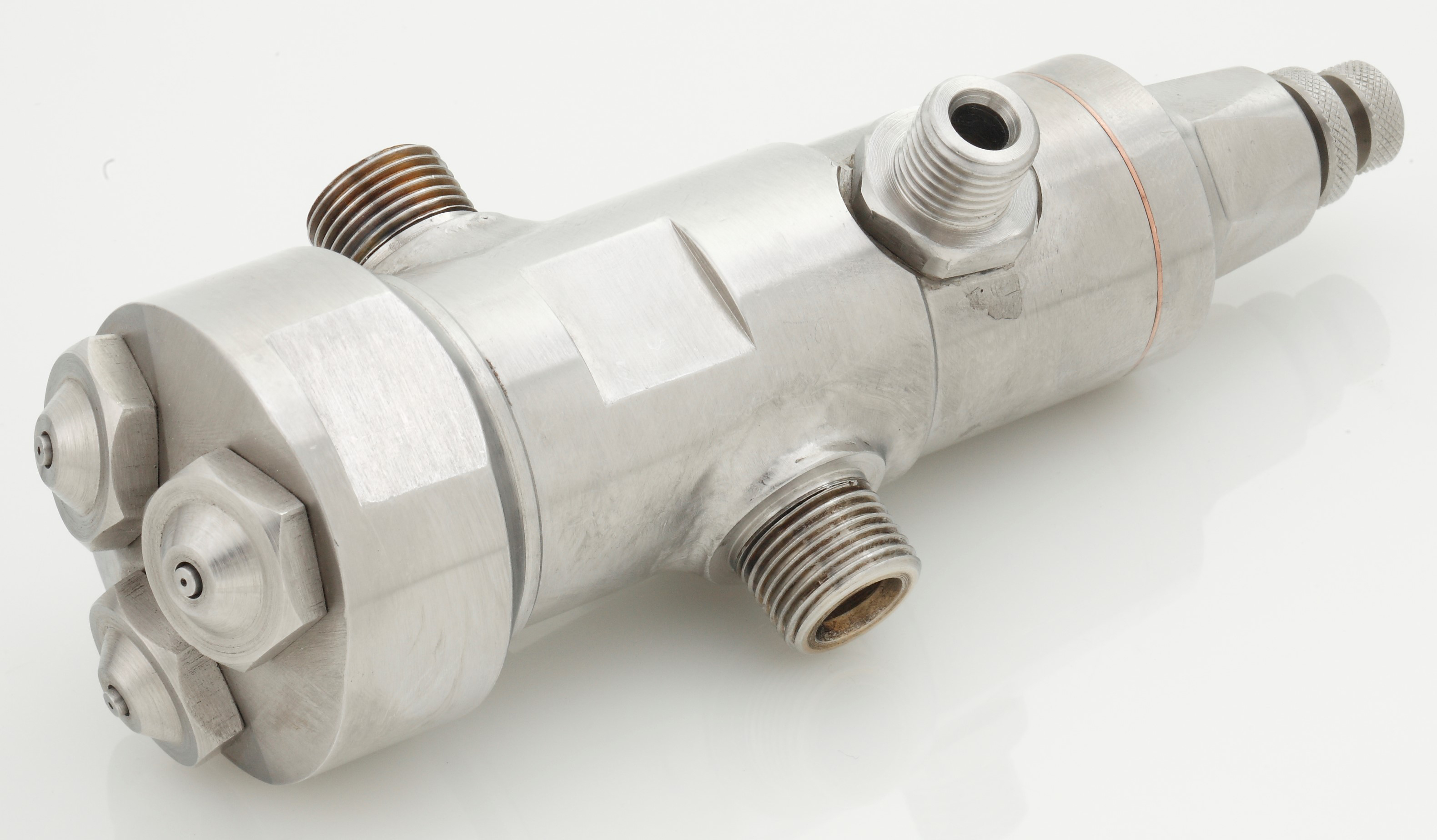

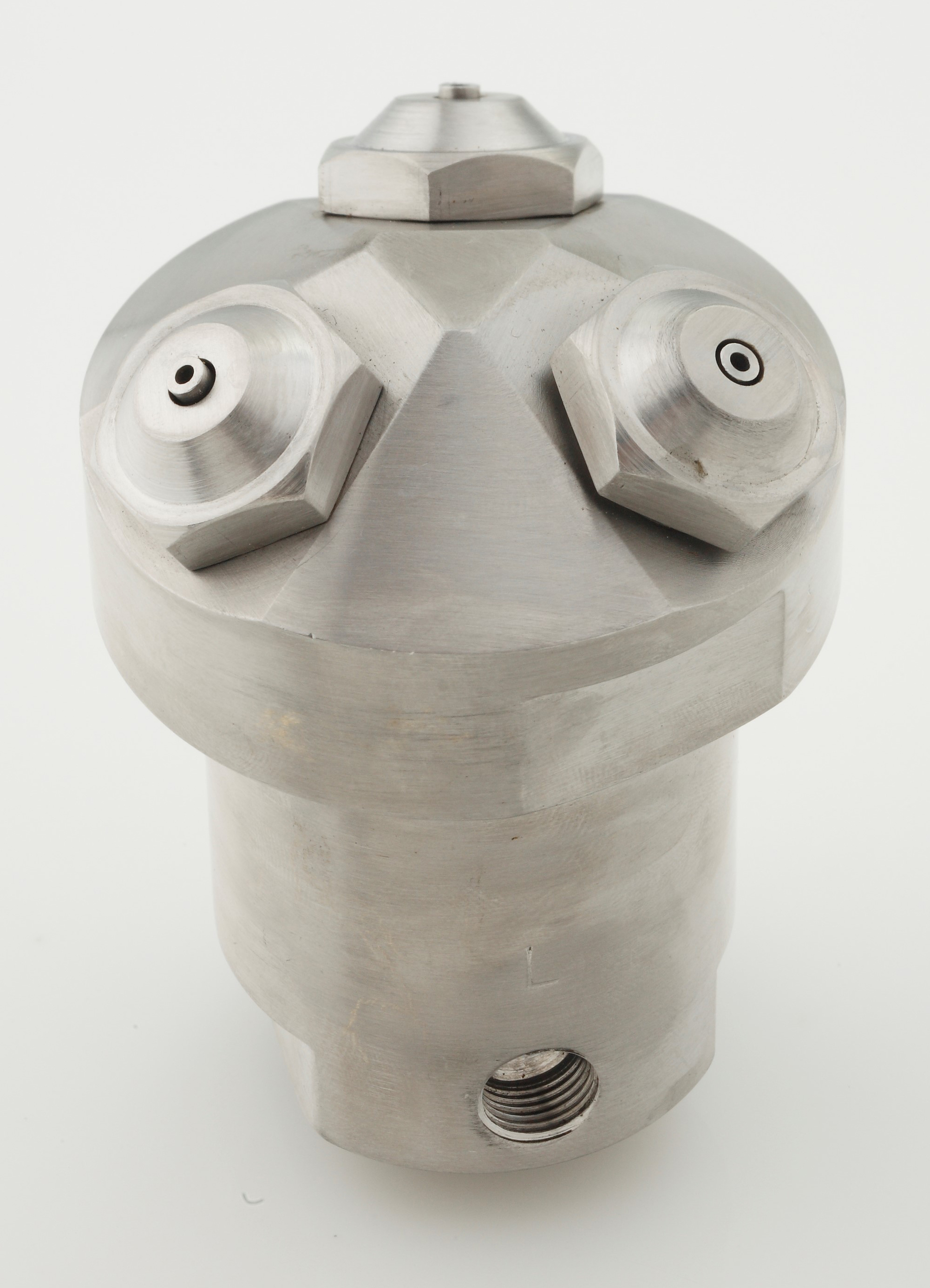

Siddharth Multiple Air Atomizing spray gun is specially designed for applications where, large quantities of highly viscous liquids and pastes are required to be finely atomized to mists. It ensures large surface coverage and guarantees optimum atomization with high capacity flow rates.
It is available in spray angles of 45º and 90º. This design is a cluster of 3 or 7 full cone nozzles mounted on the nozzle head. It has independent connections for Air and Liquid. On request similar design with a modified auto shut off assembly is also being supplied with or w/o a regulating screw. Liquid inserts Orifice sizes ranges from sizes Ø 0.5mm – Ø 3.0mm. The spray is based on external mixing principles. The liquid is fed by either suction, gravity or pressure principles.

The orientation for end connections can be selective. Of the three independent connections - each for Air, Liquid and Compressed Air for Auto shut off needle – they can be provided @ 90º from each other, @180º from each other or in a straight line whichever desired. Standard connections are 1/4" BSP (F) for Air and Liquid inlets and 1/8” BSP compressed air inlet for Auto Shut off.
The precise design of an inbuilt cleaning needle facilitates in quick cleaning of the liquid nozzle outlet. On switching off the compressed air supply the needle closes automatically and abruptly the liquid outlet, thereby avoiding any post dropping.

The Multiple Air Atomizing nozzle finds its application in tablet coating, humidifying air products, F.B.C., tracking light heavy oil firing, spray coating, drying etc.
All individual components are available as spare parts. i.e. nozzle bodies, liquid inserts and air caps, needle assemblies etc. The precise manufacturing of replacement parts ensures interchangeability without hampering the spray performance.
Material of construction is S.S. 316 with P.T.F.E. gaskets and viton seals.

Siddharth coating gun is the most portable and widely chosen models for coating application because of its compact size. It is extensively used for Tablet coating among other processes and in food industry.
Its design features includes an independent Air connection for Cone Air. Here the angle can be varied from 20º - 30º. The atomization also can be varied from coarse to fine by decreasing or increasing the air pressure.

The Fan Air connection ensures a wide coverage with a maximum angle of 100º when the air pressure is increased. Decreasing the Air pressure results in the formation of a Round Jet with 20º spray angle. Both the flat jet and round jet can be controlled from the outside. The liquid connection is equipped with a regulating screw that ensures accurate metering of the liquid to be set to any desired position. An independent Auto shut off connection activates the Auto shut off needle thus preventing post dropping.
Liquid inserts Orifice sizes ranges from sizes Ø 0.5mm – Ø 2.5mm. The spray is based on external mixing principles. The liquid is fed by either suction, gravity or pressure principles.
The body of the nozzle is machined from S.S.316 with a chrome plated brass air cap for fan jet atomization. All other wetted parts are machined from S.S.316 with P.T.F.E gaskets and Viton seals.

Siddharth Air Atomizing 2 fluid nozzles are used to atomize liquids with the help of air or steam. These nozzles are made available with different spray set ups, Which, can be altered by just changing the air cap or liquid nozzle. Different desired flow rates and spray coverage can be achieved by interchanging these.
This Flat Fan spray nozzle is based on the Internal mixing principle. Flat Jet spray angles can be varied from 30º to 120º.

Liquid inserts Orifice sizes ranges from sizes Ø 0.5mm – Ø 2.5mm. The liquid is fed by either suction, gravity or pressure principles.
The cleaning and control needle mechanism cleans the liquid orifice and the regulating screw can control the liquid to the desired flow. The end connections can also be made available as per fitment requirement i.e. at Right angles or 180º apart or at the Rear end.
The standard connections for Liquid and Air is 1/4"BSP (Female) and 1/8"BSP (Female).. Material of construction varies according to process requirements from S.S.316, Brass, PTFE or any other machinable material.

Siddharth Air Atomizing 2 fluid nozzles are used to atomize liquids with the help of air or steam. These nozzles are made available with different spray set ups, Which, can be altered by just changing the air cap or liquid nozzle. Different desired flow rates and spray coverage can be achieved by interchanging these. This Flat Fan spray nozzle is based on the External mixing principle.

Siddharth Supersonic Air Atomizing 2 fluid nozzles are used to atomize liquids with the help of air or steam. This nozzle is specially designed for applications where, large quantities of highly viscous liquids and pastes are required to be finely atomized to mists. This nozzle dispenses a very dense spray. Different desired flow rates can be achieved by increasing or decreasing the liquid orifice size. The spraying principle is based on External mixing. Spray angle pattern is Full Cone with 20º to 40º coverage. Liquid inserts Orifice sizes ranges from sizes Ø 0.5mm – Ø 3.0mm. The liquid can be fed by either suction, gravity or pressure principles. The standard connections for Liquid and Air is 1/8"BSP (Female). Material of construction varies according to process requirements from S.S.316, Brass, PTFE or any other machinable material.

Siddharth Air Atomizing 2 fluid nozzles are used to atomize liquids with the help of air or steam. These nozzles are made available with different spray set ups, Which, can be altered by just changing the air cap or liquid nozzle. Different desired flow rates and spray coverage can be achieved by interchanging these.
This Flat Fan spray nozzle is based on both External and Internal mixing principle. Flat Jet spray angles can be varied from 30º to 120º depending on the set up selected.

The Full Cone too is based on External and Internal mixing principles Full Cone spray angles can be varied from 30º to 90º depending on the set up selected. Liquid inserts Orifice sizes ranges from sizes Ø 0.5mm – Ø 2.5mm. The liquid is fed by either suction, gravity or pressure principles.
The standard connections for Liquid and Air is 1/4"BSP (Female) and 1/8"BSP (Female). Material of construction varies according to process requirements from S.S.316, Brass, PTFE or any other machinable material.

This particular design is available in a flat fan pattern. This precision Air Atomizing nozzle was mainly developed for spraying viscous liquids. This nozzle is ideal for atomizing large quantity of liquids in a lesser time. It has 5 independent connections each, for atomizing air , Auto shut off, Fan air and two connections for liquid. The independent atomizing air inlet helps in varying the droplet size without affecting the flow rate. All respective inlet connections are of 1/8”BSP.

Siddharth Air Atomizing spray gun is a unique two substance gun which finds its application in tile glazing. This nozzle provides a very fine Flat spray. There are two inlets for atomizing air and a central inlet for liquid. Material of construction is brass.

Siddharth Air Atomizing nozzle is a unique two substance nozzle which finds its application in tile glazing. This nozzle provides a very fine Flat spray. There are two inlets for atomizing air and a central inlet for liquid. Material of construction is brass.

A Multiple jet as the name suggests has multiple ports drilled on the periphery of its body. Each port has a specific angle, which is meant to cover the insides of a tank entirely. These are mainly used to clean insides of small casks, barrels, tubes, pipes, etc. It is also used to inject steam, gas, or compressed air in order to circulate liquids. It is available in standard end connections of 1/8 “ BSP(F) – 1/2 “ BSP (F)
